Structures In Practice By Gautam H. Oza

1,000.00

By Gautam H. Oza

1st Edition 2018
ISBN : 9789385039348
Binding : Paperback
Pages : 626 + 20 = 646
Size (mm) : 279 × 30 × 203
Weight : 1300 g

Download PDF

Compare
SKU: 9789385039348 Categories: , , Tags: ,

Share this product

Description

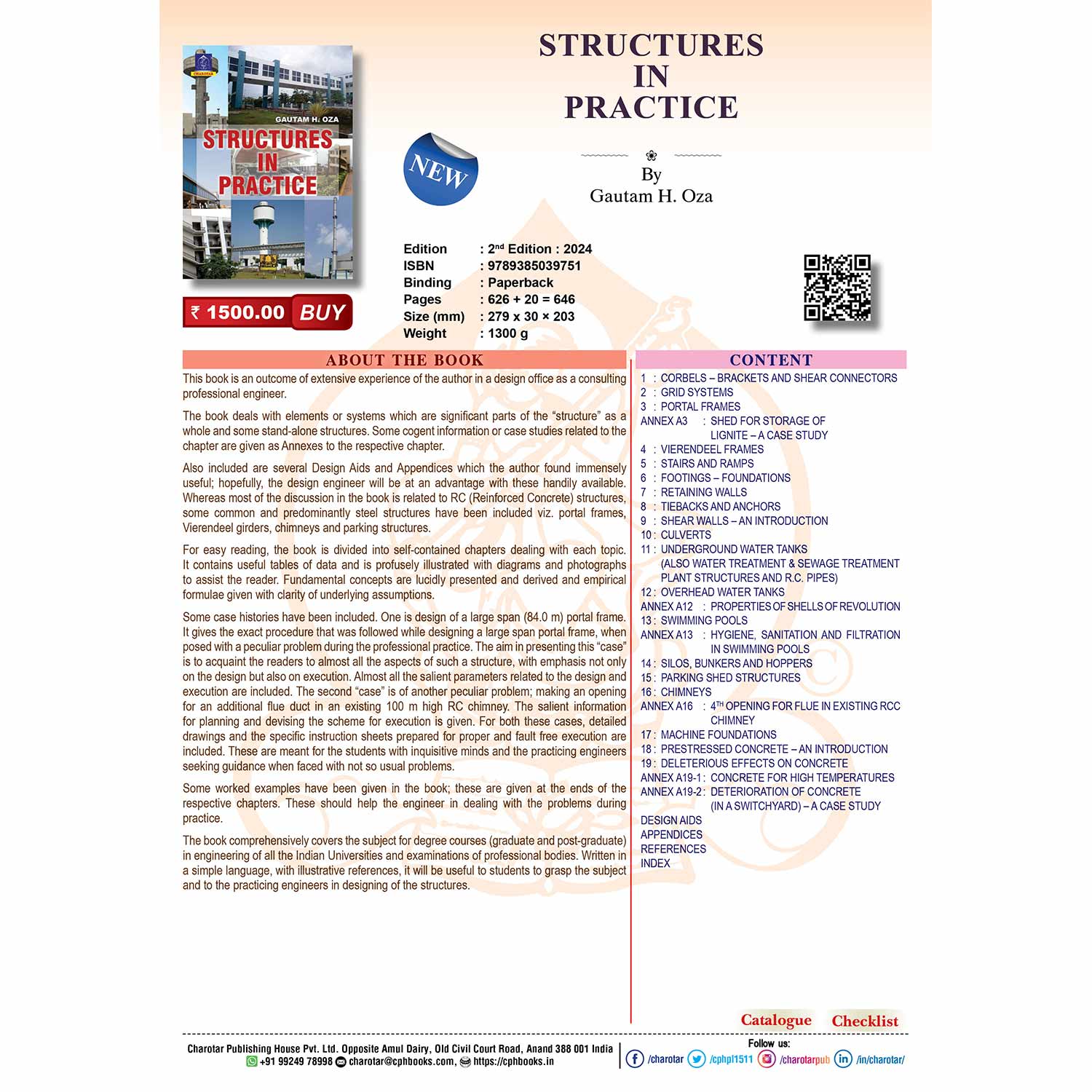

This book is an outcome of extensive experience of the author in a design office as a consulting professional engineer.

The book deals with elements or systems which are significant parts of the “structure” as a whole and some stand-alone structures. Some cogent information or case studies related to the chapter are given as Annexes to the respective chapter.

Also included are several Design Aids and Appendices which the author found immensely useful; hopefully, the design engineer will be at an advantage with these handily available. Whereas most of the discussion in the book is related to RC (Reinforced Concrete) structures, some common and predominantly steel structures have been included viz. portal frames, Vierendeel girders, chimneys and parking structures.

For easy reading, the book is divided into self-contained chapters dealing with each topic. It contains useful tables of data and is profusely illustrated with diagrams and photographs to assist the reader. Fundamental concepts are lucidly presented and derived and empirical formulae given with clarity of underlying assumptions.

Some case histories have been included. One is design of a large span (84.0 m) portal frame. It gives the exact procedure that was followed while designing a large span portal frame, when posed with a peculiar problem during the professional practice. The aim in presenting this “case” is to acquaint the readers to almost all the aspects of such a structure, with emphasis not only on the design but also on execution. Almost all the salient parameters related to the design and execution are included. The second “case” is of another peculiar problem; making an opening for an additional flue duct in an existing 100 m high RC chimney. The salient information for planning and devising the scheme for execution is given. For both these cases, detailed drawings and the specific instruction sheets prepared for proper and fault free execution are included. These are meant for the students with inquisitive minds and the practicing engineers seeking guidance when faced with not so usual problems.

Some worked examples have been given in the book; these are given at the ends of the respective chapters. These should help the engineer in dealing with the problems during practice.

The book comprehensively covers the subject for degree courses (graduate and post-graduate) in engineering of all the Indian Universities and examinations of professional bodies. Written in a simple language, with illustrative references, it will be useful to students to grasp the subject and to the practicing engineers in designing of the structures.

Additional information

Author Name

Book Edition

Valuation of Real Properties By Rangwala

978-93-85039-34-8

Book Binding

Pages

Size

Weight

Content

1 : CORBELS – BRACKETS AND SHEAR CONNECTORS
2 : GRID SYSTEMS
3 : PORTAL FRAMES
ANNEX A3 : SHED FOR STORAGE OF LIGNITE – A
CASE STUDY
4 : VIERENDEEL FRAMES
5 : STAIRS AND RAMPS
6 : FOOTINGS – FOUNDATIONS
7 : RETAINING WALLS
8 : TIEBACKS AND ANCHORS
9 : SHEAR WALLS – AN INTRODUCTION
10 : CULVERTS
11 : UNDERGROUND WATER TANKS
(ALSO WATER TREATMENT & SEWAGE TREATMENT
PLANT STRUCTURES AND R.C. PIPES)
12 : OVERHEAD WATER TANKS
ANNEX A12 : PROPERTIES OF SHELLS OF REVOLUTION
13 : SWIMMING POOLS
ANNEX A13 : HYGIENE, SANITATION AND FILTRATION
IN SWIMMING POOLS
14 : SILOS, BUNKERS AND HOPPERS
15 : PARKING SHED STRUCTURES
16 : CHIMNEYS
ANNEX A16 : 4TH OPENING FOR FLUE IN EXISTING RCC
CHIMNEY
17 : MACHINE FOUNDATIONS
18 : PRESTRESSED CONCRETE – AN INTRODUCTION
19 : DELETERIOUS EFFECTS ON CONCRETE
ANNEX A19-1 : CONCRETE FOR HIGH TEMPERATURES
ANNEX A19-2 : DETERIORATION OF CONCRETE
(IN A SWITCHYARD) – A CASE STUDY
DESIGN AIDS
APPENDICES
REFERENCES
INDEX

Details Content

Chapter 1 CORBELS – BRACKETS AND SHEAR CONNECTORS

1-1 General
1-2 Brackets or Corbels
1-2-1 Flexure
1-2-2 Bearing
1-2-3 Diagonal Tension
1-2-4 Splitting
1-2-5 Horizontal Movement
1-3 Detailing of Corbel
1-4 Shear Friction
1-5 American Method of Design
1-6 Anchorage of Tensile Reinforcement
1-7 Shear Connectors
1-8 Example 1-1

Chapter 2 GRID SYSTEMS

2-1 General
2-2 Types of Grids
2-3 Load Distribution in Grid Beams
2-3-1 Grid – Three × Three Panels
2-3-2 Grid – Five × Five Panels
2-4 Rankine-Grashoff Approximate Analysis Method
2-5 Plate Theory Analysis Method
2-6 Flexibility and Stiffness Methods
2-6-1 Flexibility Method
2-6-2 Stiffness Method
2-7 Stiffness Method of Structural Analysis
2-8 Finite Element Method (FEM)
2-9 Conclusion
2-10 Example 2-1

Chapter 3 PORTAL FRAMES

3-1 Introduction
3-2 Portal Frames
3-2-1 Behaviour
3-2-2 Types / Forms of Portal Frames
3-2-3 Design Considerations
3-2-4 Why Select Portal Frame as the Form of Structure?
3-3 Approximate Analysis for Lateral Loads
3-4 Hinges – RC Portal Frames
3-5 Portal Frames in Steel
3-5-1 Analysis of Steel Portal Frames
3-5-2 Rigid Frame Knees (or Haunches)
3-5-3 Summary
3-5-4 Advantages and Disadvantages of Open-Web Portal Frames
3-6 A Case Study
3-7 Photographs
3-8 Examples
3-8-1 Example 3-1
3-8-2 Example 3-2
Annex A3 SHED FOR STORAGE OF LIGNITE – A CASE STUDY
A3-1 General
A3-2 Stockpile Capacities
A3-3 Need for Covering Stockpiles
A3-4 Dimensions, Analysis and Design
A3-4-1Dimensions
